Mechanical clamping

Knife edge clamps

Kinfe edge clamps can be used instead of the original brass hex clamps for clamping rough cut stock, castings and any material that requires a hardened clamping element.

BRIDE VIS CRANTEE

Type :

Knife edge clamps,

Catalog 219 :

p. 280

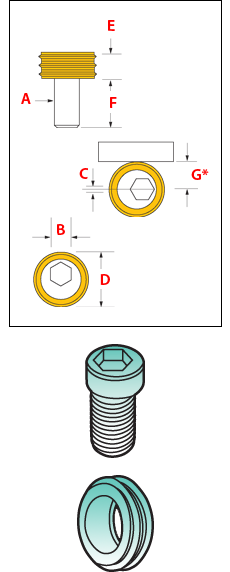

Cylindrical knife edge washer + cam screw

Screw
A

Key
B

Range
C

Force
(N)

Pack

Code

Reference

€ Unit

M10

1,52

20,6

6,35

19,0

10,2

8 900

8 pcs

M82584

8MM82584

207,66

M12

2,03

25,4

9,52

22,8

12,7

17 800

8 pcs

M82588

8MM82588

190,46

M16

2,54

30,2

12,70

28,5

15,0

26 700

4 pcs

M82592

8MM82592

128,50

M10 Cam screw

Screw

Pack

Code

Reference

€ Unit

M10

10 pcs

M50369

8MM50369

60,80

M12 Cam screw

Screw

Pack

Code

Reference

€ Unit

M12

8 pcs

M50371

8MM50371

67,11

M16 Cam screw

Screw

Pack

Code

Reference

€ Unit

M16

4 pcs

M50373

8MM50373

54,50

Knife edge washer only

For screw

Pack

Code

Reference

€ Unit

M10

8 pcs

M12584

8MM12584

146,86

8MM12588B

146,85

M16

4 pcs

M12592

8MM12592

85,47
