THREADING
INTERPOLATED

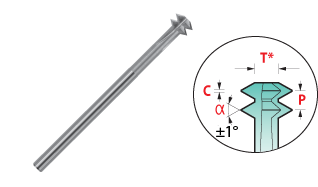

THREAD Cutters
two flutes
α 60°
CARBIDE = hardness 1800 HV, to machine steels over 1300 N/mm²,  Treated steels up to 60 HRC, abrasive tough steels, stainless steels, titanium alloys, hard bronze, inconel, nimonic, waspaloy, hard cast irons and all other metals, thermoplastics, nylon, PVC, laminated, graphite, reinforced polymer with glass or carbon fibres, ceramics, glass.


The same tool will achieve ISO pitch, right or left hand, in blind or through holes.
General tolerances
Bi-face 846-M
Angle :
60°
Material :
CARBIDE
Form :
Thread Cutters
Serie :
two flutes
Use :
machine use
Catalog 219 :
Screw
P
D
d1
d2
L
mini
C
Reference
€ Unit
M0,8
0,2
0,57
0,29
3
39
2,4
0,01
88846M00800
91,78
M0,9
0,225
0,64
0,33
3
39
2,7
0,01
88846M00900
86,05
M1,0
0,25
0,71
0,35
3
39
3
0,015
88846M01000
80,31
M1,2
0,25
0,91
0,55
3
39
3,6
0,015
88846M01200
77,45
M1,4
0,3
1,06
0,64
3
39
4,2
0,02
88846M01400
74,57
M1,6
0,35
1,2
0,7
3
39
4,8
0,02
88846M01600
74,57
M1,8
0,35
1,4
0,85
3
39
5,5
0,02
88846M01800
65,39
M2,0
0,4
1,54
0,9
3
39
6
0,02
88846M02000
74,57
M2,5
0,45
1,95
1,35
3
39
7
0,025
88846M02500
80,31
M3
0,5
2,4
1,7
6
66
9
0,03
88846M03000
86,05
M4
0,7
3,2
2,2
6
66
12
0,04
88846M04000
97,52
M5
0,8
4
2,95
6
66
15
0,05
88846M05000
103,25
M6
1
4,85
3,45
6
75
18
0,07
88846M06000
114,74
