THREADING

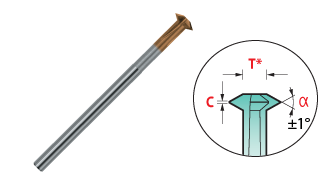

Bi-face THREAD Milling Cutters
3 flutes α 60°
Hard'X coating
CARBIDE + Hard'X = hardness 1800 HV & 3500 HV, to machine steels over 1300 N/mm², treated steels up to 67 HRC, stainless steels, titanium alloys, hard bronzes, inconel, nimonic, waspaloy, hard cast irons and all other metals, thermoplastics, nylon, Pvc, laminated materials graphite, reinforced polymer with glass or carbon fibres, all ceramics, glass.


With the same tool realize right and left hand threads , for blind holes or through holes.
General tolerances
Hard'X 845-MH
Angle :
60°
Material :
CARBIDE
Coating :
Hard'X
Form :
Thread Cutters
Serie :
single flute
Use :
machine use
Catalog 219 :
Screw
D
d1
d2
L
mini
C
Reference
€ Unit
M0,8
0,57
0.27
3
39
2,4
0,01
88845MH0080
78,02
M0,9
0,64
0.31
3
39
2,7
0,01
88845MH0090
75,72
M1,0
0,71
0.35
3
39
3,0
0,015
88845MH0100
72,27
M1,2
0,91
0.55
3
39
3,6
0,015
88845MH0120
69,98
M1,4
1,06
0.62
3
39
4,2
0,02
88845MH0140
67,69
M1,6
1,2
0.69
3
39
4,8
0,02
88845MH0160
66,55
M1,8
1,35
0,84
3
39
5,5
0,02
88845MH0180
69,98
M2,0
1,5
0.92
3
39
6
0,02
88845MH0200
69,98
M2,5
1,9
1.27
3
39
7
0,025
88845MH0250
71,13
M3
2,3
1.57
6
66
9
0,03
88845MH0300
76,87
M4
3,1
2.09
6
66
12
0,04
88845MH0400
90,63
M5
4,0
2.90
6
66
15
0,05
88845MH0500
92,93
M6
4,8
3.47
6
75
18
0,07
88845MH0600
97,52
M8
6,5
4.85
8
80
22
0,08
88845MH0800
123,91
M10
7,9
5.95
8
80
26
0,09
88845MH1000
135,38
