THREADING

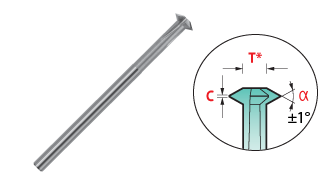

Bi-face THREAD Milling Cutters
3 flutes α 60°
CARBIDE = hardness 1800 HV, to machine steels over 1300 N/mm²,  Treated steels up to 60 HRC, abrasive tough steels, stainless steels, titanium alloys, hard bronze, inconel, nimonic, waspaloy, hard cast irons and all other metals, thermoplastics, nylon, PVC, laminated, graphite, reinforced polymer with glass or carbon fibres, ceramics, glass.


With the same tool realize right and left hand threads , for blind holes or through holes.
General tolerances
Bi-face 845-M
Angle :
60°
Material :
CARBIDE
Form :
Thread Cutters
Serie :
single flute
Use :
machine use
Catalog 219 :
Screw
D
d1
d2
L
mini
C
Reference
€ Unit
M0,8
0,57
0.27
3
39
2,4
0,01
88845M00800
74,57
M0,9
0,64
0.31
3
39
2,7
0,01
88845M00900
72,27
M1,0
0,71
0.35
3
39
3,0
0,015
88845M01000
68,84
M1,2
0,91
0.55
3
39
3,6
0,015
88845M01200
66,55
M1,4
1,06
0.62
3
39
4,2
0,02
88845M01400
64,25
M1,6
1,2
0.69
3
39
4,8
0,02
88845M01600
64,25
M1,8
1,35
0,84
3
39
5,5
0,02
88845M01800
65,39
M2,0
1,5
0.92
3
39
6
0,02
88845M02000
65,39
M2,5
1,9
1.27
3
39
7
0,025
88845M02500
66,55
M3
2,3
1.57
6
66
9
0,03
88845M03000
72,27
M4
3,1
2.09
6
66
12
0,04
88845M04000
84,91
M5
4,0
2.90
6
66
15
0,05
88845M05000
87,19
M8
6,5
4.85
8
80
22
0,08
88845M08000
114,74
M6
4,8
3.47
6
75
18
0,07
88845M06000
91,78
M10
7,9
5.95
8
80
26
0,09
88845M10000
126,21
