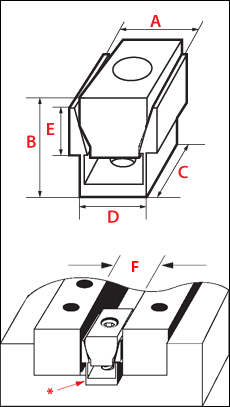

* Fixing slot
Easy to set.
A milled slot wider than D dimension will insure clamp remains in line with workpiece. Clamp sides should not come in contact with slot walls during expansion.
F is the distance needed between workpieces for clamp clearance. Drill and tap mounting hole on the center of F dimension.
