Mechanical clamping
Hexagonal clamp
for t-slots
•Ideal for low profile clamping
•Brass hex follows contour of unusual shaped parts.
•Packaged in pairs or complete kits.

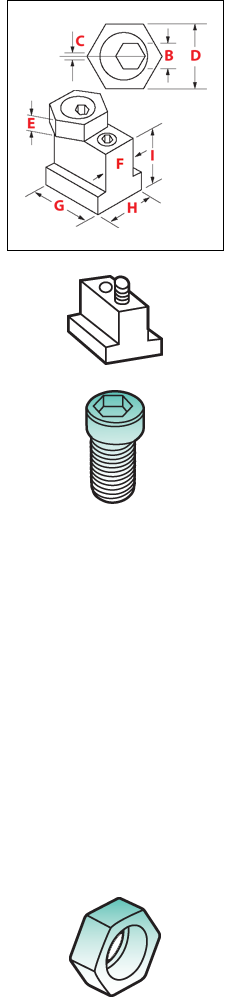

BRIDE VIS EN T
Type :
Hexagonal, for T-slots
Catalog 219 :

T-slot Hex washer with cam screw

Screw
Groove
F
Key
B
Range
C
D
E
G
H
I
Force
(N)
Code
Reference
€ Unit
M6
8
5
1,01
15
4,75
23,2
12,7
9,5
3 558
M50422
8MM50422
68,27
M6
10
5
1,01
15
4,75
23,2
14,2
14,2
3 558
M50424
8MM50424
68,27
M8
12
5
1,01
20
4,75
27,9
15,9
15,9
3 355
M50426
8MM50426
68,27
M10
14
7
1,52
20
6,35
30,5
22,4
22,2
8 900
M50428
8MM50428
68,27
M12
16
8
2,03
25
9,53
30,9
25,4
22,2
13 340
M50430
8MM50430
68,27
M12
18
8
2,03
25
9,53
34,7
28,6
28,6
13 340
M50432
8MM50432
72,86
M16
20
12
2,54
30
12,70
39,2
31,8
31,8
26 700
M50434
8MM50434
92,93
M16
22
12
2,54
30
12,70
44,3
34,9
41,3
26 700
M50436
8MM50436
135,38

T-slot with set screws

For groove
Pack
Code
Reference
€ Unit
8 mm
2 pcs
M50708
8MM50708
55,07
10 mm
2 pcs
M50710
8MM50710
55,07
12 mm
2 pcs
M50712
8MM50712
55,07
14 mm
2 pcs
M50714
8MM50714
55,07
16 mm
2 pcs
M50716
8MM50716
55,07
18 mm
2 pcs
M50718
8MM50718
63,10
20 mm
2 pcs
M50720
8MM50720
65,97
22 mm
2 pcs
M50722
8MM50722
100,39

M6 Cam screw

Screw
Steel
treated
Stainless
steel
Pack
Code
Reference
€ Unit
M6
X
4 pcs
M50364
8MM50364
59,66
M6
X
10 pcs
M50365
8MM50365
59,09

M8 Cam screw

Screw
Steel
treated
Stainless
steel
Pack
Code
Reference
€ Unit
M8
X
4 pcs
M50366
8MM50366
74,57
M8
X
10 pcs
M50367
8MM50367
59,09

M10 Cam screw

Screw
Pack
Code
Reference
€ Unit
M10
10 pcs
M50369
8MM50369
60,80

M12 Cam screw

Screw
Pack
Code
Reference
€ Unit
M12
8 pcs
M50371
8MM50371
67,11

M16 Cam screw

Screw
Pack
Code
Reference
€ Unit
M16
4 pcs
M50373
8MM50373
54,50

Hex washer only

For screw
Steel
treated
Stainless
steel
Pack
Code
Reference
€ Unit
M4
X
10 pcs
M10580
8MM10580
39,58
M6
X
10 pcs
M10582
8MM10582
41,88
M6
X
4 pcs
M10583
8MM10583
40,15
M8
X
10 pcs
M10584
8MM10584
44,17
M8
X
4 pcs
M10585
8MM10585
42,44
M10
X
10 pcs
M10586
8MM10586
45,89
M12
X
8 pcs
M10590
8MM10590
48,75
M16
X
4 pcs
M10592
8MM10592
32,69

Plastic cases

Designation
Composition
Reference
€ Unit
Set M50642
For groove 8mm
6 Hex washer with screw
4 T-slots and 2 Hex keys
8MM50642
159.47
Set M50644
For groove 10mm
6 Hex washer with screw
4 T-slots and 2 Hex keys
8MM50644
159.47
Set M50646
For groove 12mm
6 Hex washer with screw
4 T-slots and 2 Hex keys
8MM50646
159.47
Set M50648
For groove 14mm
6 Hex washer with screw
4 T-slots and 2 Hex keys
8MM50648
159.47
Set M50650
For groove 16mm
6 Hex washer with screw
4 T-slots and 2 Hex keys
8MM50650
159.47
Set M50652
For groove 18mm
6 Hex washer with screw
4 T-slots and 2 Hex keys
8MM50652
170.94
Set M50654
For groove 20mm
6 Hex washer with screw
4 T-slots and 2 Hex keys
8MM50654
243.23
Set M50656
For groove 22mm
6 Hex washer with screw
4 T-slots and 2 Hex keys
8MM50656
323.54
