Radius form end tools
Radius Bi-face Chamfering
biconical cutters
3 flutes
Hard'X coating
FRONT
BACK
FACING
CARBIDE + Hard'X = hardness 1800 HV & 3500 HV, to machine steels over 1300 N/mm², treated steels up to 67 HRC, stainless steels, titanium alloys, hard bronzes, inconel, nimonic, waspaloy, hard cast irons and all other metals, thermoplastics, nylon, Pvc, laminated materials graphite, reinforced polymer with glass or carbon fibres, all ceramics, glass.


For super-finish operations, Bi-face has a constant relieved profile.
Longitudinal or interpolated work for front and back chamfering of corners and holes.
General tolerances

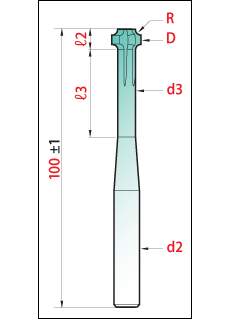

Hard'X 849-RH
Material :
CARBIDE
Coating :
Hard'X
Form :
With Radius
Serie :
STANDARD
Use :
machine use
Catalog 219 :
R
D
maxi
d3
maxi
d2
Δx
Δy
Reference
€ Unit
0,5
4,9
3,65
6
2,37
3,17
2,15
3,3
20
88849RH0050
102,10
0,6
5,2
3,75
6
2,52
3,37
2,14
3,5
25
88849RH0060
102,10
0,8
5,9
4,05
6
2,89
3,77
2,14
3,9
30
88849RH0080
102,10
1,0
6,6
4,35
8
3,22
4,27
2,23
4,3
35
88849RH0100
131,93
1,2
7,4
4,75
8
3,62
5,07
2,63
5,2
35
88849RH0120
131,93
1,5
8,4
5,1
10
4,12
5,77
2,73
5,8
35
88849RH0150
162,91
1,8
9,3
5,4
10
4,57
6,37
2,72
6,4
35
88849RH0180
162,91
2,0
9,9
5,6
10
4,87
6,87
2,82
6,8
35
88849RH0200
162,91
2,5
10,9
5,6
12
5,37
7,97
2,90
7,8
35
88849RH0250
196,18
3,0
11,9
5,6
12
5,87
9,07
3,00
8,8
35
88849RH0300
196,18
