Countersinks

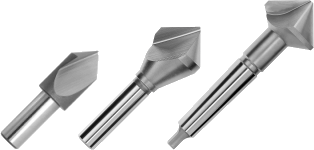

Single flute chamfering cutters - 90° Angle
HSS-E Cobalt = hardness 65 HRC, to machine steels up to 1000 N/mm², cast iron up to 180 HB, copper, brass, bronze, aluminium.
General tolerances
Magafor 421
Angle :
90°
Material :
HSS-E Cobalt
Serie :
right hand cut
Use :
machine use
Type :
Metric / inch
Catalog 219 :
inch
metric
Morse taper shank
D
mm
D
inch
d1
d2
L
Reference
€ Unit
3,17
1/8"
1
3,17
32
84421031700
13,77
4
1
4
40
84421040000
11,76
4,76
3/16"
1
4,76
35
84421047600
14,34
5
1
5
40
84421050000
12,32
6
1
6
40
84421060000
14,05
6,35
1/4"
1
6,35
38
84421063500
16,63
7,93
5/16"
1
6,35
42
84421079300
17,21
8
1
6
40
84421080000
14,62
9,52
3/8"
1
6,35
45
84421095200
18,07
10
1
6
45
84421100000
15,50
12
2
8
50
84421120000
18,65
12,7
1/2"
2
6,35
51
84421127000
22,09
15
2
8
55
84421150000
22,09
15
2
Morse 1
91
84421150100
41,30
15,87
5/8"
2
9,52
57
84421158700
28,11
19,05
3/4"
2
12,7
67
84421190500
41,30
20
2
10
65
84421200000
34,99
20
2
Morse 1
106
84421200100
56,80
22,22
7/8"
3
12,7
70
84421222200
68,27
25
3
12
78
84421250000
54,50
25
3
Morse 1
110
84421250100
83,75
25,4
1"
3
12,7
70
84421254000
73,42
30
3
12
88
84421300000
74,57
30
3
Morse 2
114
84421300200
86,05
31,75
1-1/4"
3
12,7
70
84421317500
101,53
35
4
16 *
103
84421350000
107,28
35
5
Morse 2
133
84421350200
120,46
40
5
16 *
118
84421400000
114,74
40
5
Morse 2
145
84421400200
152,59
40
5
Morse 3
160
84421400300
131,93
50
12
16 *
126
84421500000
167,51
50
5
Morse 2
153
84421500200
211,10
50
5
Morse 3
168
84421500300
220,29
63
10
Morse 3
182
84421630300
299,46
80
10
Morse 4
229
84421800400
551,85
* 3 flatted shanks = effective holding

Sets

Designation
Composition
Reference
€ Unit
SET 421
5 chamfering cutters 90° metric
∅ 10 - 15 - 20 - 25 - 30
84421000000
195.04
SET 421/2
6 chamfering cutters 90° metric
∅ 6 - 8 - 10 - 12 - 15 - 20
84421000002
117.02
SET 421/6
6 chamfering cutters 90° inch
∅ 6,35 - 7,93 - 9,52
12,7 - 15,87 - 19,05
84421000006
118.16
